显示屏贴合胶带解决方案

光学透明粘贴应用

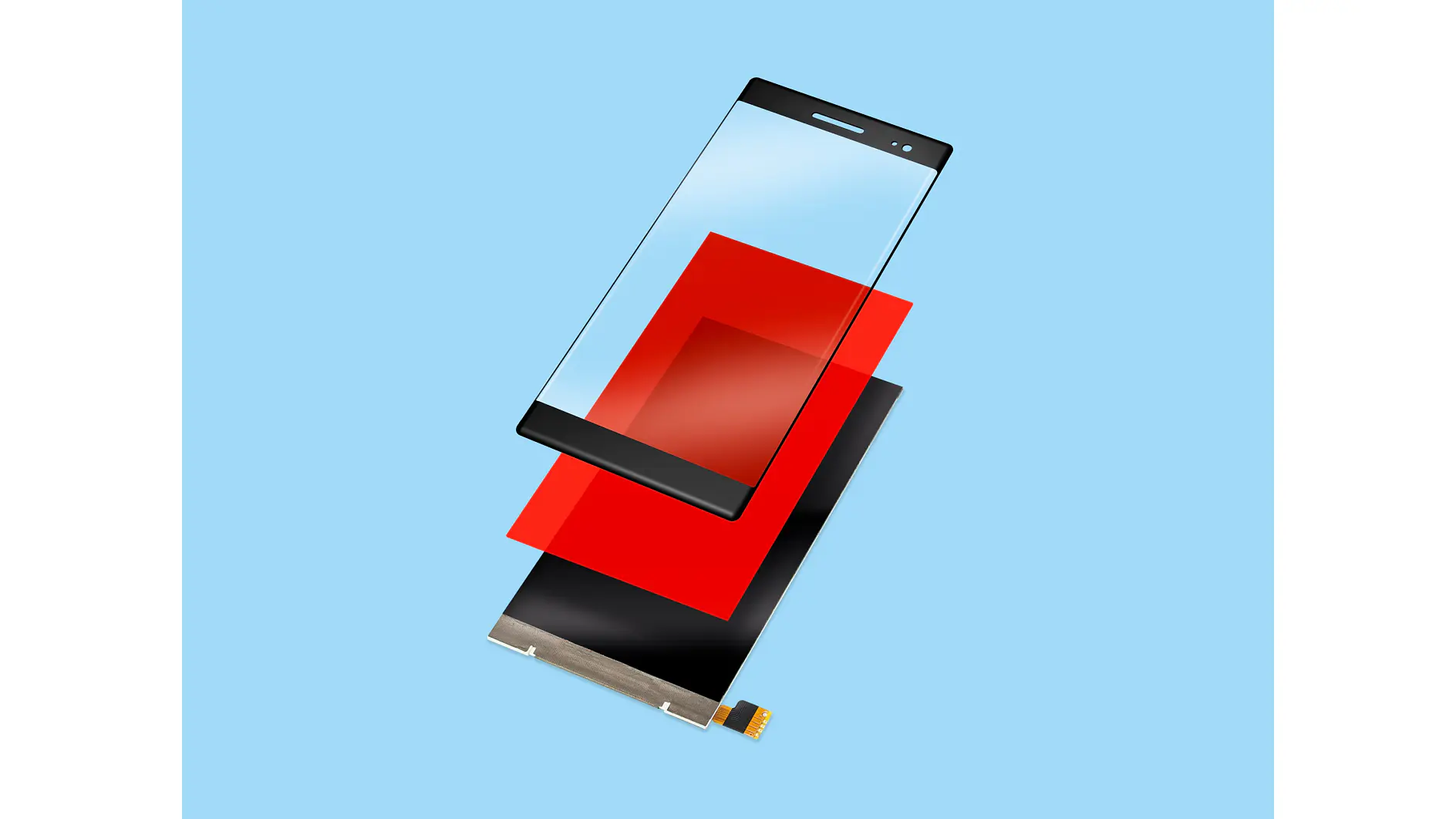

Exploded view of a smartphone screen assembly on a light blue background, showing separated components: a transparent glass screen secured with tesa tape, a red protective layer, and a black display panel. (This text has been generated by AI)
盖板和触控屏的粘贴
进行盖板和触控屏的贴合时,须确保始终使用能够覆盖油墨并与ITO兼容的胶带。使用曲面玻璃时,胶带还应具有非常好的应力释放性能。对于塑料板材,则必须具有释气抑制的特性。

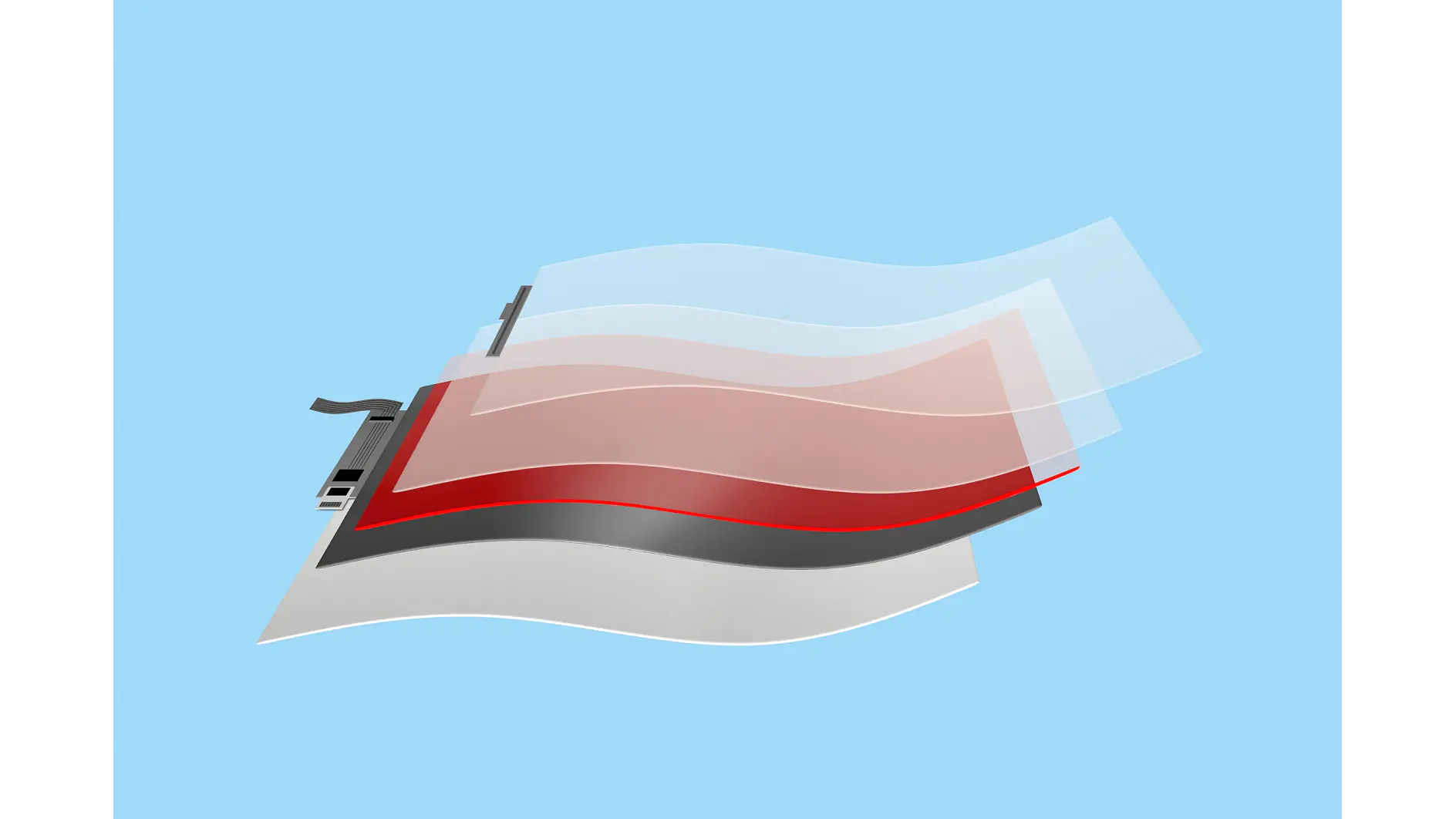

A layered digital illustration shows a schematic of a flexible electronic display. Several translucent sheets overlap each other, showcasing different internal components, bound together with tesa tape. The background is light blue. (This text has been generated by AI)
触控屏和显示屏的粘贴
触控屏和显示屏的贴合,在LCD屏和OLED屏内较为常见,贴合工艺简单,需要具有高耐候性。对于OLED屏,由于其弯曲的设计,还需要很好的抗反弹性和应力释放性能。

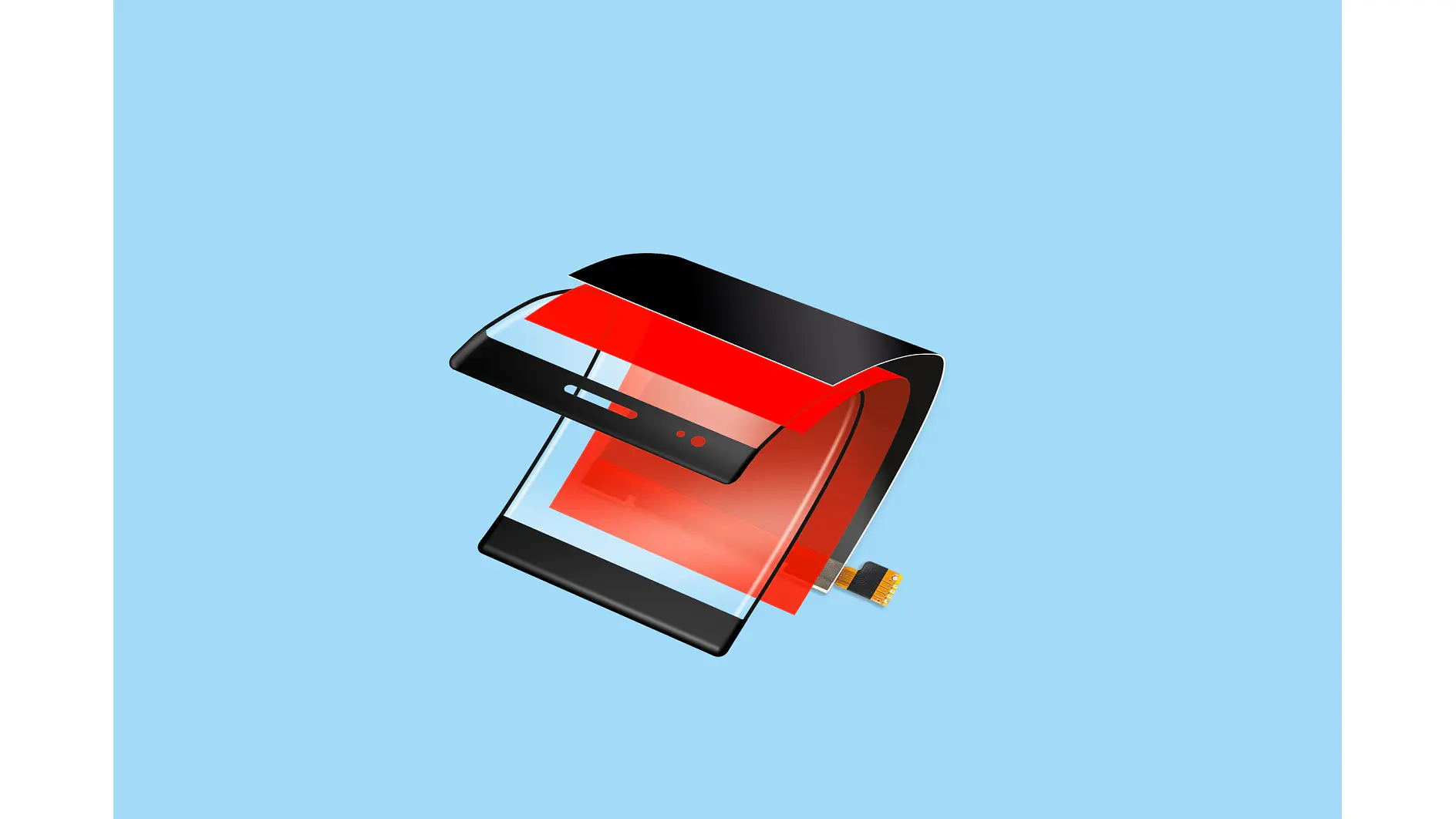

A 3D rendered image depicts a flexible electronic display with a slightly curved, transparent screen and a black and red frame. It has a connector at the bottom, set against a plain light blue background, with tesa tape prominently featured. (This text has been generated by AI)
柔性屏的粘贴
在可折叠或可绕曲的屏幕中,柔性屏的贴合是非常严苛的应用。柔性屏中使用的板材材质不同,膜材的贴合需要高剥离力和优秀的可弯折性。对于某些特殊膜材(如:纳米银)的贴合,则需要兼容性好的光学透明胶带。

产品开发

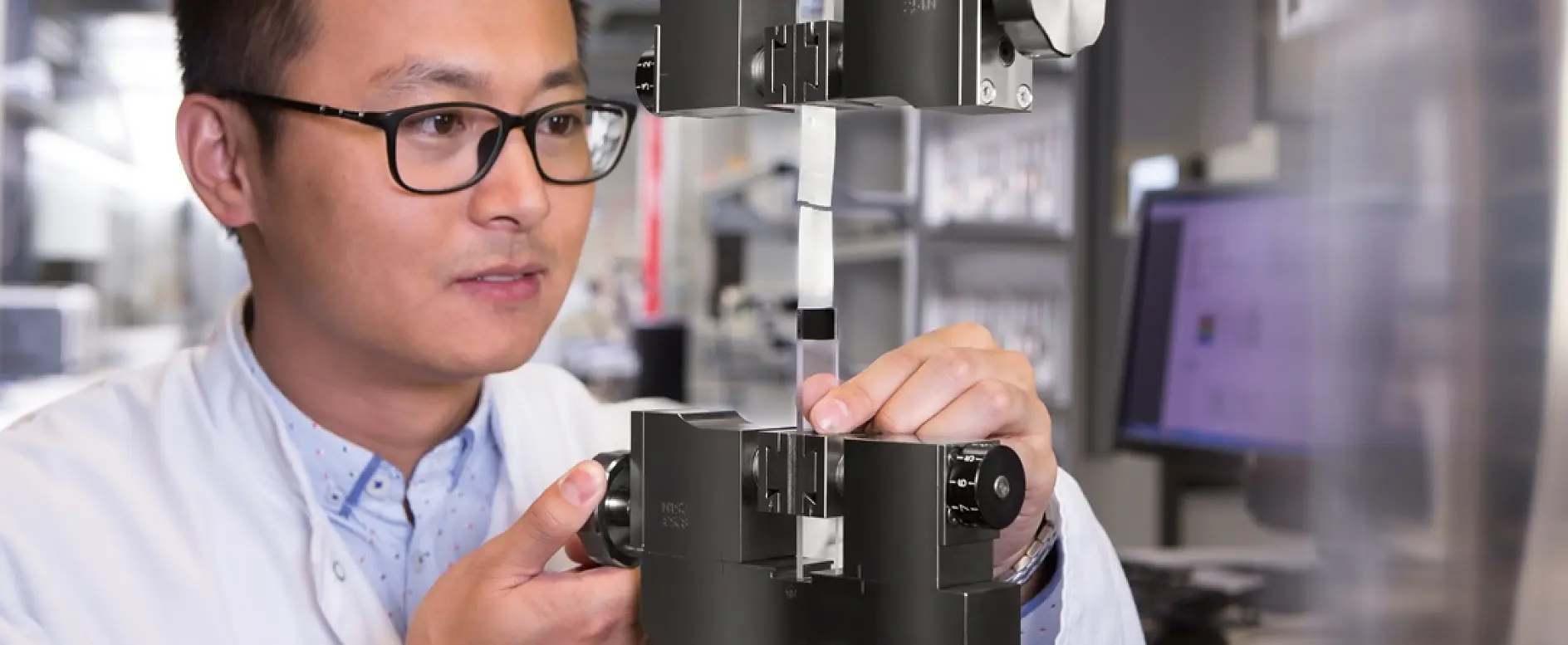

A person wearing glasses and a lab coat adjusts a tensile testing machine in a laboratory setting. The machine holds a sample strip of tesa tape for testing. In the background, a computer monitor is visible. (This text has been generated by AI)

除了全面的产品分类,我们致力于研发新产品,以支持折叠屏和曲面屏的手持设备,以及屏下的缓冲应用。此外,我们正在研发新一代的
适用于车载显示的光学透明胶带,以及其他用于OLED屏和有机太阳能电池板的水汽阻隔胶带。


如需了解更多产品开发信息,欢迎联系我们:tape.solution@tesa.com

分类概览

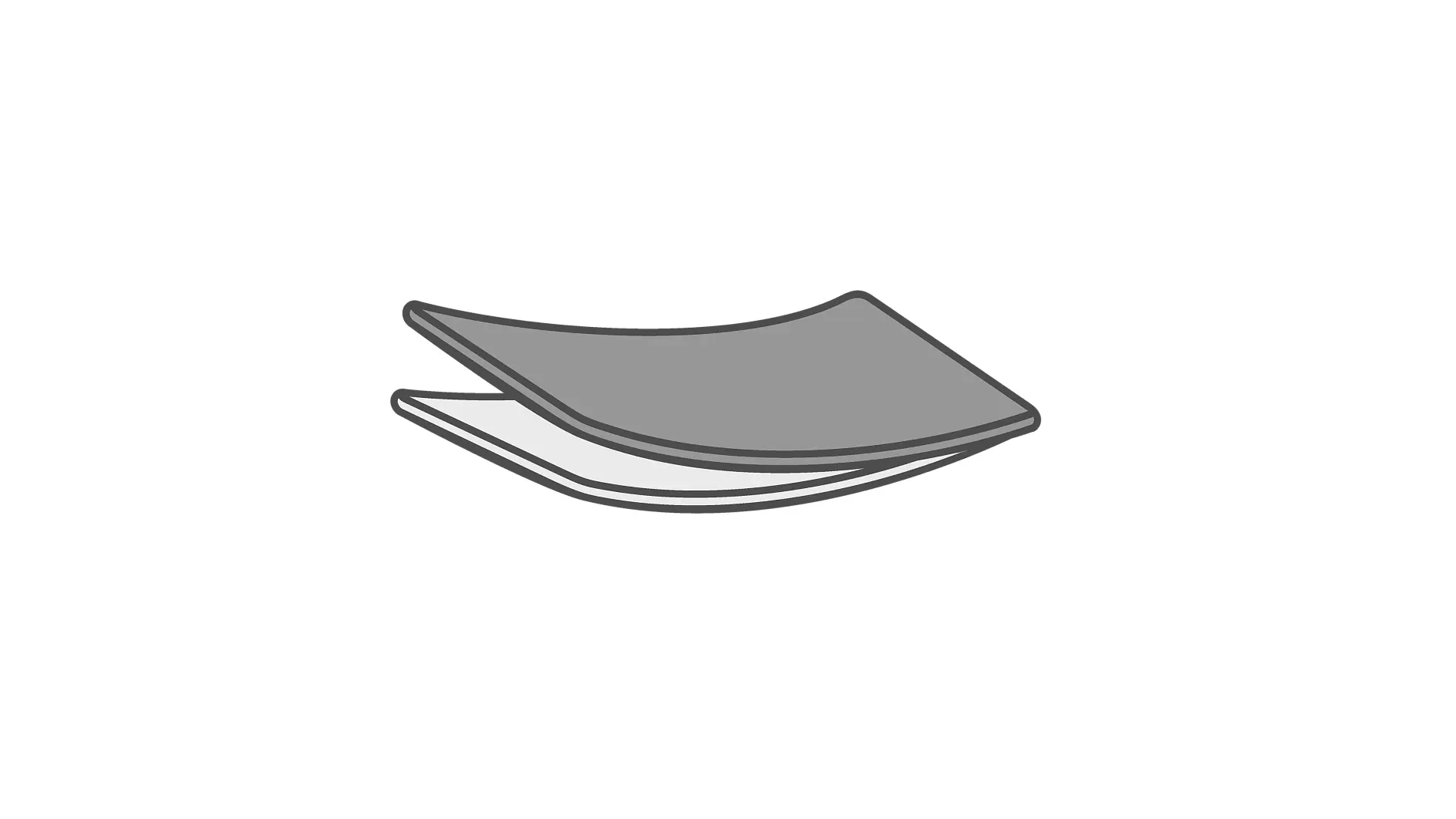

Illustration of two overlapping parallel lines, curving upward at the ends, with one line above and slightly offset from the other. The top line is gray, and the bottom line is white with a gray outline. (This text has been generated by AI)
6940x
6940x 是我们的多功能旗舰产品系列,是压敏型光学透明胶带,易于模切,且与各类膜材均 能兼容,如:ITO、偏光片和盖板玻璃,可适用于G/F或F/F的屏幕贴合应用。
A gray rectangle with the word PLASTIC in white capital letters. Two white arrows point upward from each end, both crossed out with red X marks made with tesa tape. (This text has been generated by AI)
6980x
6980x是UV固化型光学透明胶带,具有释气抑制的特性,专用于塑料板材如PC和PMMA的 屏幕贴合。该系列具有优异的填充特性,在固化后具有优秀的气泡抑制特性,可适用于G/G 或G/F的屏幕贴合。
Diagram showing a UV process with an arrow labeled UV pointing right and three downward arrows leading to a box labeled INK STEP. The image illustrates a step in a procedure involving UV, ink, and tesa tape. (This text has been generated by AI)
6960x
6960x 是UV固化型光学透明胶带,提供了优秀的填充性能,以完全覆盖油墨段差,在固化后 具有出色的稳定性,可适用于G/G或F/G的屏幕贴合。
Diagram showing UV light passing through water, indicating a filtration process. Two red X marks with arrows pointing downward suggest areas where the filtration is not effective, sealed using tesa tape. (This text has been generated by AI)
6920x
6920x 是压敏型光学透明系列,易于贴合和模切,可保护对UV敏感的材料,阻隔波长小于 380纳米的紫外线,在G/F或F/F的屏幕贴合中实现最佳效果。
Diagram of an OLED component in the center, labeled OLED. Two arrows point towards it from each side, both labeled H2O with red crosses over them, indicating the prevention of water infiltration using tesa tape. (This text has been generated by AI)
6150x
6150x 是UV固化型光学透明胶带,专用于对水汽敏感的薄膜,显示屏或触控面板的粘贴。它 具有1,000小时的滞后时间,低WVTR,高附着力和均衡的空隙填充能力。在F/F的贴合中表现 最佳。
Diagram of an OLED panel with two red crosses and H2O on either side, indicating blockage. Arrows point towards the OLED from both sides, suggesting that water (H2O) is being prevented from entering the panel using tesa tape. (This text has been generated by AI)
6153x
6153x 是压敏胶,提供优秀的水汽阻隔性能,保护敏感材料。浅褐色的外观,适用于OLED屏 下封装,以及其他非透明的应用,如:有机太阳能电池材料保护层。
Gray icon of three water droplets covered by a prohibition symbol, indicating a no water or water not allowed concept. (This text has been generated by AI)
6156x
6156x 是压敏型光学透明胶带,专用于对水汽敏感的薄膜,显示屏或触控屏的粘贴。 低WVTR,低介电常数,具有耐腐蚀的特性。该系列与纳米银和金属材料具有出色的兼容性, 在F/F的贴合中表现最佳。

想要寻找合适的解决方案?

德莎还有更多的产品选择,我们的专家可以根据您的要求,提供定制的解决方案。

用邮件联系我们或者联系您的当地销售代表​:tape.solution@tesa.com

光学透明胶带概览
