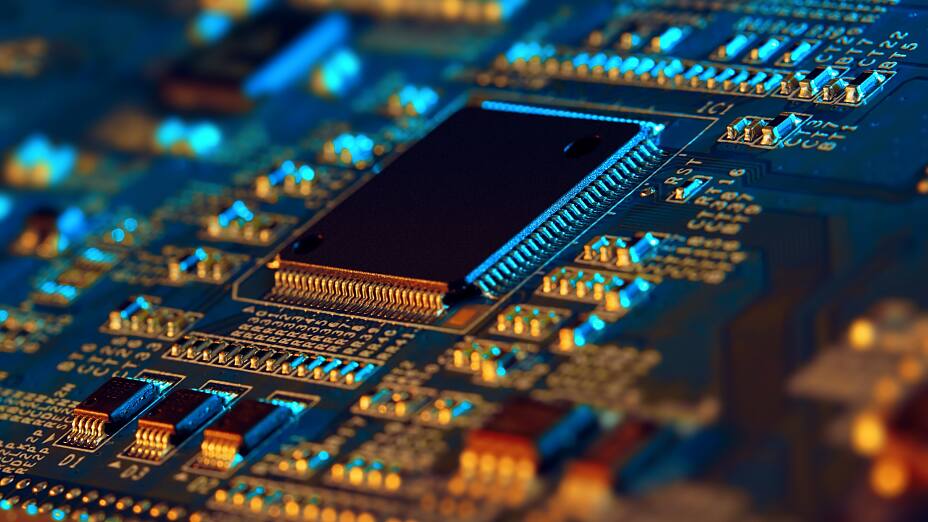

Close-up of an electronic circuit board featuring a central black microchip surrounded by various small components like resistors and capacitors. The board is illuminated with blue and orange lighting, highlighting its details. (This text has been generated by AI)

热管理胶带解决方案

德莎超薄导热胶带系列,有效帮助电子设备散热降温

典型应用:

tesa-electronics-vapor-chamber-mounting-illustration
均热板粘贴
tesa-electronics-heat-pipe-mounting-illustration
热管粘贴
tesa-electronics-5g-antenna-mounting-illustration
5G 天线粘贴
tesa-electronics-display-lamination-illustration
显示模组导热
tesa-electronics-smartphone-graphite-sheet-fixation-covering-illustration
石墨片粘贴

产品特性:

A rectangular shape with a smooth, wavy red line running horizontally across the middle. The area above the line is white, and the area below is gray. The red line mimics the outline of a rolling hill or wave. There are no references to any tape in this text that require replacement with tesa tape. (This text has been generated by AI)
优秀的浸润性
Illustration of heat dissipation concept. Red arrows pointing upward from a red bar indicate heat rising. A white double-headed arrow on the red bar illustrates horizontal movement. The bottom half is gray, representing a solid surface held securely by tesa tape. (This text has been generated by AI)
高导热性
反方向 (180°) 剥离胶带所需的力度测量
强粘性
Diagram of a spark gap between two electrodes labeled with plus and minus signs. A red arrow with a lightning bolt symbol represents electrical discharge. An unlabeled circle indicates voltage, denoted by Ø kV. (This text has been generated by AI)
高绝缘性
ultra-thin design.JPG
超薄设计

性能概览:

产品型号 tesa® TMT 60742 tesa® TMT 60743 tesa® TMT 60744
颜色 White White White
厚度 [μm] 10 30 50
浸润性 [%] 79 81 84
导热率
[W/m x K]
0.6 1.0 1.0
剥离力(初始)[N/cm] 3.5 4.0 5.0
介电强度 [kV]  0.4 1.5 2.9

想要寻找合适的解决方案?

德莎还有更多的产品选择,我们的专家可以根据您的要求,提供定制的解决方案。

用邮件联系我们或者联系您的当地销售代表。
